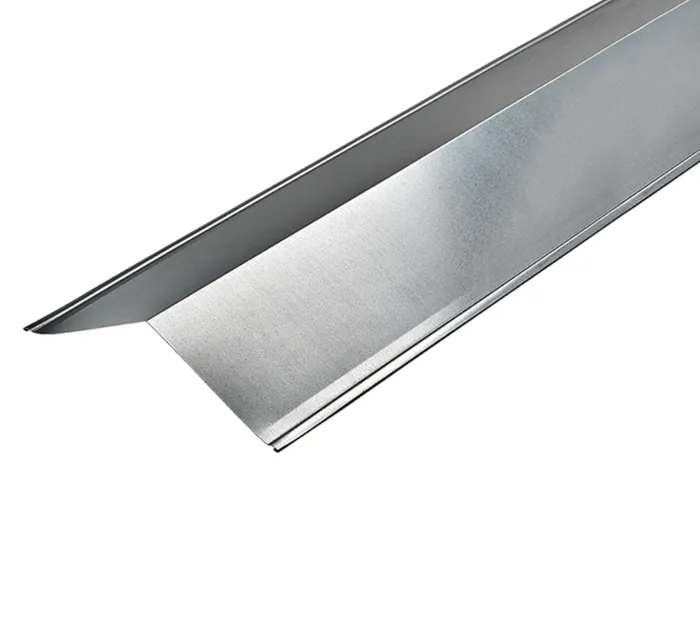

130º Ridge Flashings in Plain Galvanised Finish - 3m 200mm x 200mm
Cladco 3m Galvanised Ridge Flashings are used to seal and finish an apex roof. Folded to a 130-degree internal angle, Ridge Flashings can be flexed 10-15 degrees either way depending on your roof’s angle. Cladco Flashings include a 10mm safety welt both sides.
More About 3m Galvanised Ridge Flashings
Ridge Flashings are a major component to any profiled apex roof. Cladco Galvanised Flashings have increased strength with a 10mm safety welt on both sides and come in 3m lengths as standard. When it comes to fitting Cladco Ridge Flashings, please remember to allow a minimum 200mm overlap from one Galvanised Ridge Flashing to the next.
Galvanised Coated Flashings provide resistance to rust and weathering, ensuring longevity for your roof. Secured to the top of Cladco Roofing Sheets, Ridge Flashings can be fixed using 22mm Stitcher Screws to the sheets below.
Each Galvanised Ridge Flashing includes a 10mm safety welt and is manufactured to 3m lengths. Cladco Ridge Flashings are also available with different coatings and colours to suit your roof’s design.
If you have any specific requirements for your Flashings, please don’t hesitate to contact us directly and we can help to meet your needs. Alternatively, consider our Custom-Made Flashings for a bespoke finish to your project.
Cladco Ridge Flashings are also available in PVC Plastisol, Polyester Paint and GreenCoat® Pural BT coatings.
These Flashings are only recommended for use with our 13/3 Corrugated, 32/1000 Box Profile and 34/1000 Box Profile Roofing Sheets.
Please note: These 200mm x 200mm Flashings give a coverage of 190mm x 190mm due to the 10mm welt.
Order A Sample Pack!
Permissible downward (imposed) loads in kN/m2
| Sheet Thickness | Weight kg/m2 | Span Condition | Span mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | |||
| 0.50mm | 4.78 | single | 3.49 | 2.52 | 1.91 | 1.37 | 0.99 | - | - | - | - | - |
| double | 2.58 | 2 | 1.6 | 1.3 | 1.09 | 0.92 | 0.79 | - | - | - | ||
| multi | 3.15 | 2.45 | 1.96 | 1.6 | 1.34 | 1.13 | 0.86 | - | - | - | ||
| 0.70mm | 6.22 | single | 5.77 | 4.17 | 2.74 | 1.9 | 1.37 | 1.02 | 0.78 | - | - | - |
| double | 4.12 | 3.18 | 2.53 | 2.06 | 1.72 | 1.45 | 1.2 | 0.94 | 0.75 | - | ||
| multi | 5.04 | 3.9 | 3.11 | 2.54 | 2.11 | 1.57 | 1.2 | 0.94 | 0.75 | - | ||
Permissible wind uplifts (negative) loads in kN/m2
| Sheet Thickness | Weight kg/m2 | Span Condition | Span mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | |||
| 0.50mm | 4.78 | single | 3.62 | 2.62 | 1.98 | 1.52 | 1.1 | 0.82 | - | - | - | - |
| double | 2.52 | 1.95 | 1.56 | 1.27 | 1.06 | 0.89 | 0.77 | - | - | - | ||
| multi | 3.09 | 2.39 | 1.91 | 1.56 | 1.3 | 1.1 | 0.94 | 0.82 | - | - | ||
| 0.70mm | 6.22 | single | 5.58 | 4.03 | 3.05 | 2.14 | 1.54 | 1.15 | 0.88 | - | - | - |
| double | 4.2 | 3.24 | 2.59 | 2.11 | 1.76 | 1.48 | 1.27 | 1.1 | 0.96 | 0.8 | ||
| multi | 5.13 | 3.98 | 3.18 | 2.6 | 2.16 | 1.83 | 1.57 | 1.25 | 0.99 | 0.8 | ||
Download our printable installation guide.
Download the datasheet for 130º Ridge Flashings in Plain Galvanised Finish - 3m 200mm x 200mm
