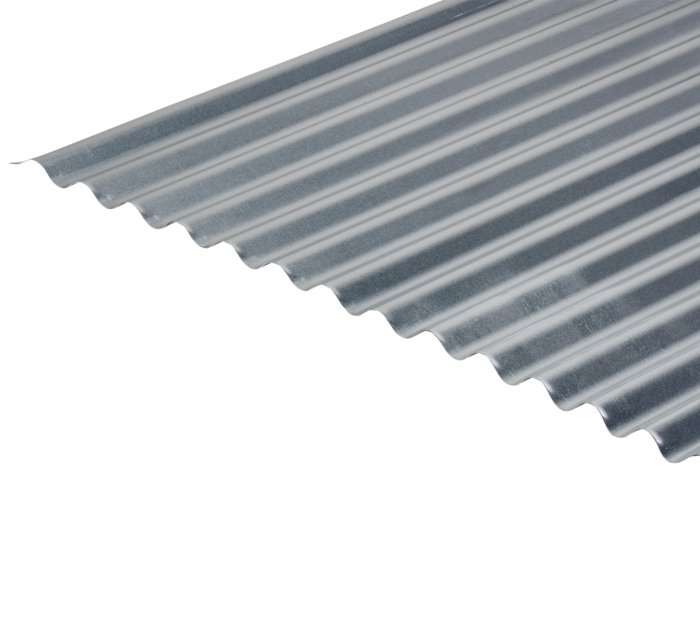

13/3 0.7 Thick Galvanised Corrugated Roofing Sheets
Cladco Profiles 0.7mm Galvanised Corrugated Roofing Sheets provide the same aesthetic as traditional, corrugated iron profiles. 13/3 Corrugated profile features 13 round corrugations, with a width coverage of 990mm when lapped. Corrugated Roofing Sheets are a cost-effective alternative to traditional roofing and cladding materials. We advise using 65mm Screws with Baz Washers to fix these Sheets to Purlins.
Uses of 0.7mm Thick Galvanised Corrugated Roofing Sheets
Cladco 0.7mm thick 13/3 Corrugated Profile Roofing Sheets offer a traditional profile for roofing installations, featuring 13 round corrugations across the width of the Sheet.
Steel Corrugated Roofing Sheets have many uses within commercial, domestic, industrial and agricultural buildings, and can be used as a single-skin roofing or corrugated side cladding.
Galvanised Corrugated Roofing Sheets provide a 990mm width coverage when lapped and can also be used to over-clad an existing roof, or as part of an insulated built-up system.
Construction with this type of Corrugated Sheeting should be undertaken down to a minimum 10-degree pitch, using self-drilling TEK Screw Fixings with BAZ Washers on the top section of the profile.
Benefits of Galvanised Corrugated Roofing Sheets
Galvanised Corrugated Sheeting is a traditional profile that is often used within roofing or side cladding projects. This profile is lightweight and easy to install without the use of complicated tools, meaning your installation process will be fast and simple. Sheets can be cut to your specific project requirements.
Each Galvanised Roof Sheet is independently tested to ensure it is in line with current CE EN 14782 requirements.
Looking for our Tarpaulin Range?
Our Tarpaulin Range includes Lightweight, Standard, or Heavy Weight Tarpaulins.
Inspiration
Order A Sample Pack!
Working out the total square meterage of your roof will require measuring the total width of the roof’s area as well as the distance from the eaves (the lowest point) to the apex (the highest point) of the roof. This should be undertaken carefully and safely.
We recommend taking these measurements from the inside of your building for safety purposes. Multiply the two measurements together to give the total square meterage of the roof.
For apex, or dual-sided, roofs, you will need to work out the square meterage of each side of the roof and add the numbers together for the total coverage.
Permissible downward (imposed) loads in kN/m2
| Sheet Thickness | Weight kg/m2 | Span Condition | Span mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | |||
| 0.50mm | 4.78 | single | 3.49 | 2.52 | 1.91 | 1.37 | 0.99 | - | - | - | - | - |
| double | 2.58 | 2 | 1.6 | 1.3 | 1.09 | 0.92 | 0.79 | - | - | - | ||
| multi | 3.15 | 2.45 | 1.96 | 1.6 | 1.34 | 1.13 | 0.86 | - | - | - | ||
| 0.70mm | 6.22 | single | 5.77 | 4.17 | 2.74 | 1.9 | 1.37 | 1.02 | 0.78 | - | - | - |
| double | 4.12 | 3.18 | 2.53 | 2.06 | 1.72 | 1.45 | 1.2 | 0.94 | 0.75 | - | ||
| multi | 5.04 | 3.9 | 3.11 | 2.54 | 2.11 | 1.57 | 1.2 | 0.94 | 0.75 | - | ||
Permissible wind uplifts (negative) loads in kN/m2
| Sheet Thickness | Weight kg/m2 | Span Condition | Span mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | |||
| 0.50mm | 4.78 | single | 3.62 | 2.62 | 1.98 | 1.52 | 1.1 | 0.82 | - | - | - | - |
| double | 2.52 | 1.95 | 1.56 | 1.27 | 1.06 | 0.89 | 0.77 | - | - | - | ||
| multi | 3.09 | 2.39 | 1.91 | 1.56 | 1.3 | 1.1 | 0.94 | 0.82 | - | - | ||
| 0.70mm | 6.22 | single | 5.58 | 4.03 | 3.05 | 2.14 | 1.54 | 1.15 | 0.88 | - | - | - |
| double | 4.2 | 3.24 | 2.59 | 2.11 | 1.76 | 1.48 | 1.27 | 1.1 | 0.96 | 0.8 | ||
| multi | 5.13 | 3.98 | 3.18 | 2.6 | 2.16 | 1.83 | 1.57 | 1.25 | 0.99 | 0.8 | ||
Download our printable installation guide.
