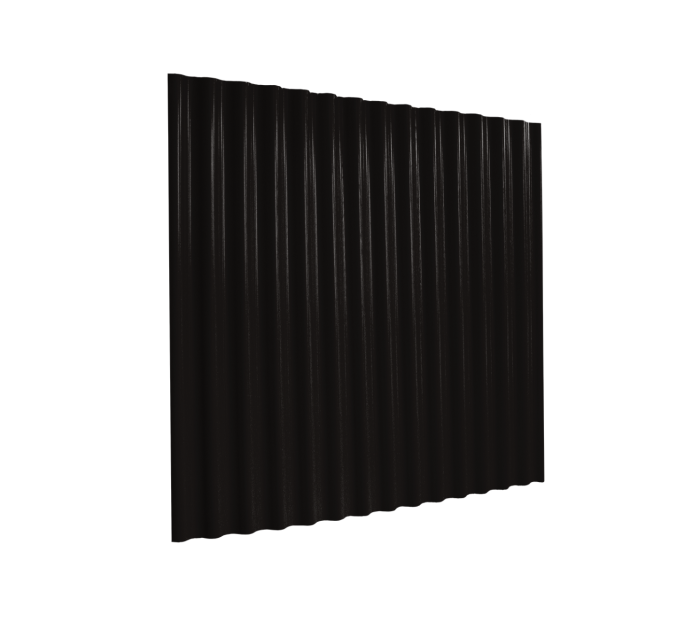

13/3 Corrugated 0.5 Thick Polyester Paint Coated Roof Sheet
Our 13/3 Corrugated 0.5 Thick Polyester Paint Coated Roof Sheets give the look of a traditional 13/3 ‘corrugated iron cladding’ profile. They have 13 corrugations of 3 inch/76mm round, with a width coverage of 990mm when installed. This sheet gives the look of traditional ‘corrugated iron cladding’ that has been used for over a century for a traditional look.
Our Corrugated Roofing Sheets are available in a range of colours and 0.5 and 0.7mm thickness, with a polyester paint coat on top of the galvanised steel. Please note, we advise using the 65mm Screw with Baz Washer with these sheets.
Uses of Corrugated Sheets Polyester
Mainly used as roofing and cladding on industrial, domestic, commercial and agricultural buildings, this single skin corrugated sheets can be used to over clad an existing roof, part of an insulated build-up system or purely as a single skin of corrugated cladding. Construction using this type of corrugated sheet can be safely undertaken down to a 10-degree pitch using self-drilling screw fixings on top of the profile.
Please note: All Juniper Green and White polyester sheets and flashings may exhibit slight colour variances between products. If you are looking to match to a previous or existing order, please call us on 01837 659901.
The Benefits of using Corrugated Cladding
The traditional look of this steel corrugated sheet, combined with its robustness to give a ‘corrugated iron cladding’ appearance, will give you a finished look to be proud of. The lightweight corrugated sheets are easy to fit, making your installation fast and easy, available in a range of colours, thicknesses and finishes, they are also independently tested to current CE EN 14782 requirements.
Do you need a Tarpaulin?
For Tarpaulins, please see our Lightweight, Standard, or Heavy Weight Tarpaulins.
From £19.14 inc VAT
From £19.14 inc VAT
Inspiration
Order A Sample Pack!

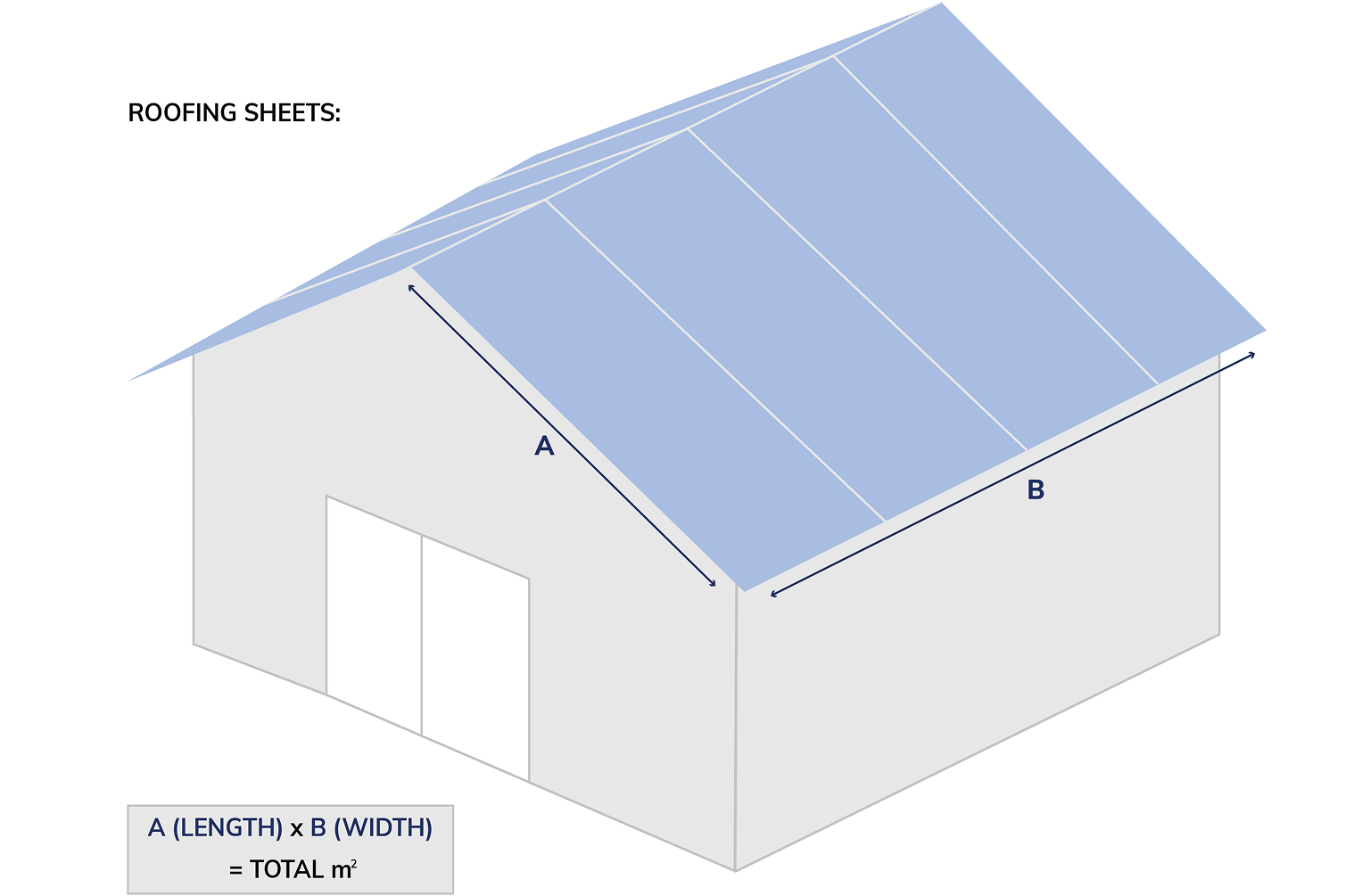

Working out the total square meterage of your roof will require measuring the total width of the roof’s area as well as the distance from the eaves (the lowest point) to the apex (the highest point) of the roof. This should be undertaken carefully and safely.
We recommend taking these measurements from the inside of your building for safety purposes. Multiply the two measurements together to give the total square meterage of the roof.
For apex, or dual-sided, roofs, you will need to work out the square meterage of each side of the roof and add the numbers together for the total coverage.
Permissible downward (imposed) loads in kN/m2
| Sheet Thickness | Weight kg/m2 | Span Condition | Span mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | |||
| 0.50mm | 4.78 | single | 3.49 | 2.52 | 1.91 | 1.37 | 0.99 | - | - | - | - | - |
| double | 2.58 | 2 | 1.6 | 1.3 | 1.09 | 0.92 | 0.79 | - | - | - | ||
| multi | 3.15 | 2.45 | 1.96 | 1.6 | 1.34 | 1.13 | 0.86 | - | - | - | ||
| 0.70mm | 6.22 | single | 5.77 | 4.17 | 2.74 | 1.9 | 1.37 | 1.02 | 0.78 | - | - | - |
| double | 4.12 | 3.18 | 2.53 | 2.06 | 1.72 | 1.45 | 1.2 | 0.94 | 0.75 | - | ||
| multi | 5.04 | 3.9 | 3.11 | 2.54 | 2.11 | 1.57 | 1.2 | 0.94 | 0.75 | - | ||
Permissible wind uplifts (negative) loads in kN/m2
| Sheet Thickness | Weight kg/m2 | Span Condition | Span mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1200 | 1400 | 1600 | 1800 | 2000 | 2200 | 2400 | 2600 | 2800 | 3000 | |||
| 0.50mm | 4.78 | single | 3.62 | 2.62 | 1.98 | 1.52 | 1.1 | 0.82 | - | - | - | - |
| double | 2.52 | 1.95 | 1.56 | 1.27 | 1.06 | 0.89 | 0.77 | - | - | - | ||
| multi | 3.09 | 2.39 | 1.91 | 1.56 | 1.3 | 1.1 | 0.94 | 0.82 | - | - | ||
| 0.70mm | 6.22 | single | 5.58 | 4.03 | 3.05 | 2.14 | 1.54 | 1.15 | 0.88 | - | - | - |
| double | 4.2 | 3.24 | 2.59 | 2.11 | 1.76 | 1.48 | 1.27 | 1.1 | 0.96 | 0.8 | ||
| multi | 5.13 | 3.98 | 3.18 | 2.6 | 2.16 | 1.83 | 1.57 | 1.25 | 0.99 | 0.8 | ||
Download our printable installation guide.
